Launch PAD 5 Link

• Intelligent Topology Mapping: Provides a visual, color-coded map of the entire vehicle communication network to quickly identify DTCs and system statuses.

• Dual-Mode Diagnosis: Supports passenger cars and light-duty commercial vehicles natively, with optional expansion for heavy-duty trucks and electric vehicles.

• J2534 Pass-Thru: Fully compatible with automotive communication standards J2534, D-PDU, and RP1210 for OEM-level programming.

• Advanced Software Functions: Includes Online Coding and Programming, 41 Service Reset Functions, and Guided Functions specifically for Volkswagen and Audi.

• SmartLink Remote Platform: Allows for remote diagnosis reservations and the use of the device as either a SmartLink C (client side) or SmartLink B (expert side).

• Rugged Hardware: Features a 9360mAh battery, 256GB storage, and a dual Wi-Fi connection for stable high-speed performance.

Optional Add-ons (Expand Your Capabilities)

The following modules can be integrated to enhance the tool’s functionality:

• VSP-600: A high-definition videoscope for visual inspections of engine cylinders and hard-to-reach areas.

• X-431 TSGUN: A professional TPMS module for sensor activation, programming, and relearning.

• Wi-Fi Printer: A portable wireless printer for generating physical diagnostic and health reports.

• BST360: A Bluetooth-connected battery tester for analyzing battery health, cranking, and charging systems.

• O2-2 Scopebox: A 4-channel oscilloscope used to analyze and troubleshoot complex electronic circuit signals.

• S2-2 Sensor Box: A sensor simulation tool used to test and verify the functionality of vehicle sensors and ECUs.

• X-431 Key Programmer: A specialized module for vehicle key matching, chip reading, and anti-theft functions.

• EG100: A precision current clamp/probe for non-invasive measurement of electrical currents.

• EM101N: A combined multimeter and oscilloscope for advanced electrical system diagnostics.

• ES200: A high-voltage insulation tester designed for safe diagnostics on EV and hybrid vehicle systems.

Service Reset Overview

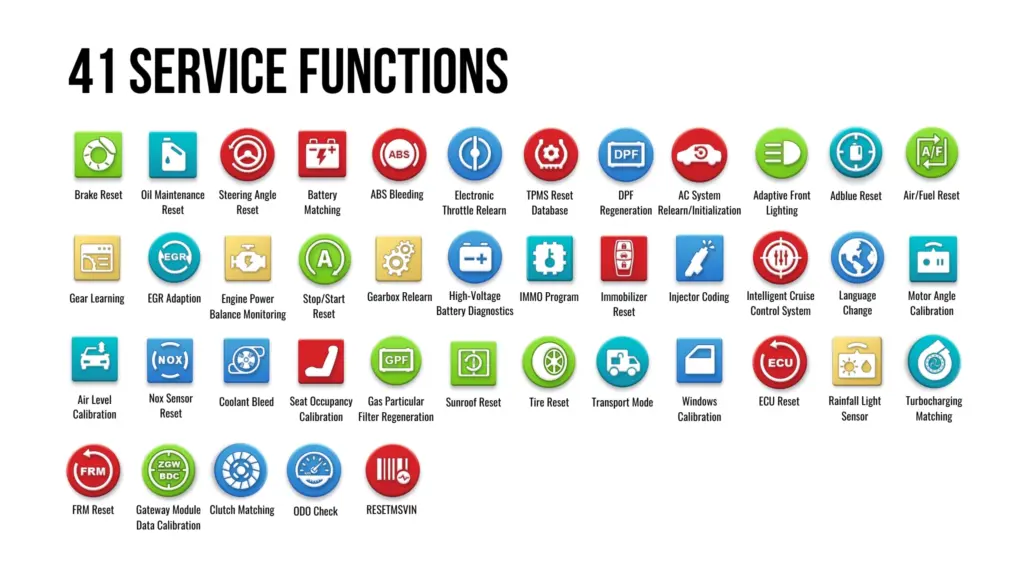

The X-431 PAD V LINK supports 41 service functions (special functions) that allow technicians to reset or relearn vehicle parameters after specific maintenance or repairs. These functions are essential for ensuring that the vehicle’s Electronic Control Units (ECUs) recognize new components and that maintenance reminder lamps are properly managed.

EV Add-on Kit (New Energy Diagnostics)

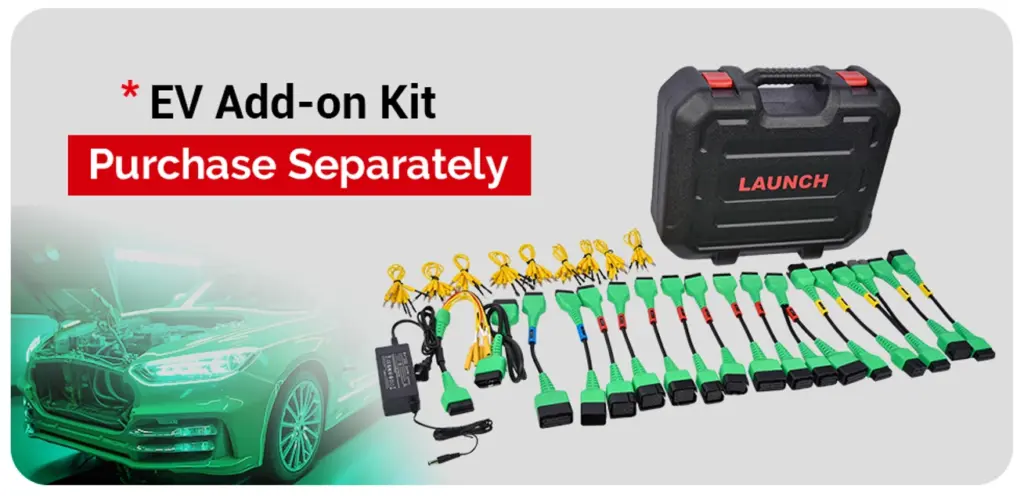

Description: Upgrade your diagnostic capabilities to handle the growing electric vehicle market. The Launch EV Add-on Kit is a comprehensive solution for high-voltage battery pack analysis. It allows technicians to read critical battery data such as State of Charge (SOC), State of Health (SOH), individual cell voltages, and temperature. The kit includes a wide array of specialized connectors for major EV brands like Tesla and BYD, enabling deep diagnostics through non-standard ports or jumper cables when the standard OBDII port isn’t enough.

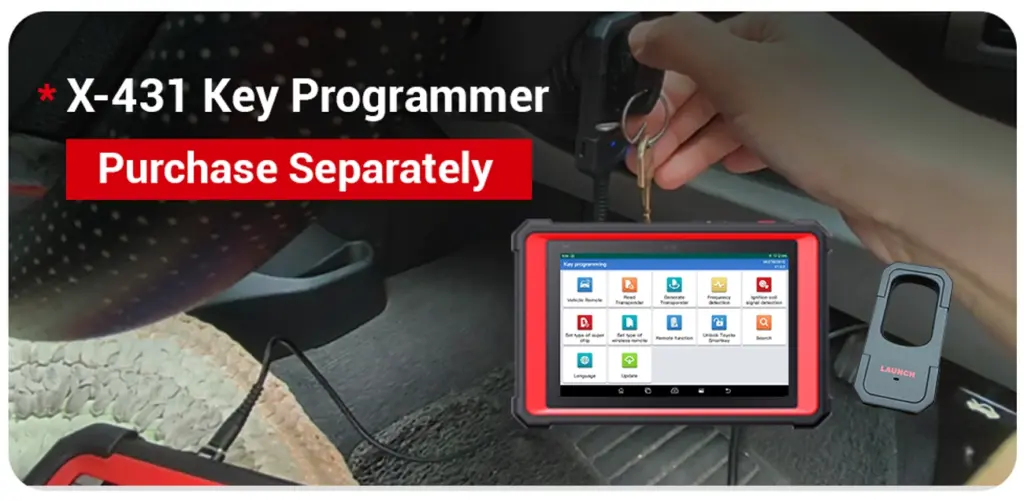

X-431 Key Programmer

Description: The X-431 Key Programmer is a powerful hardware extension that transforms your PAD V into a professional locksmith tool. It is designed to handle key matching and anti-theft functions with ease. Key features include Transponder Reading/Generation, Frequency Detection, and Ignition Coil Signal Detection. It also supports generating Launch-specific remotes and unlocking Toyota smart keys, making it an essential module for workshops offering key replacement services.

Intelligent Topology Mapping & Reporting

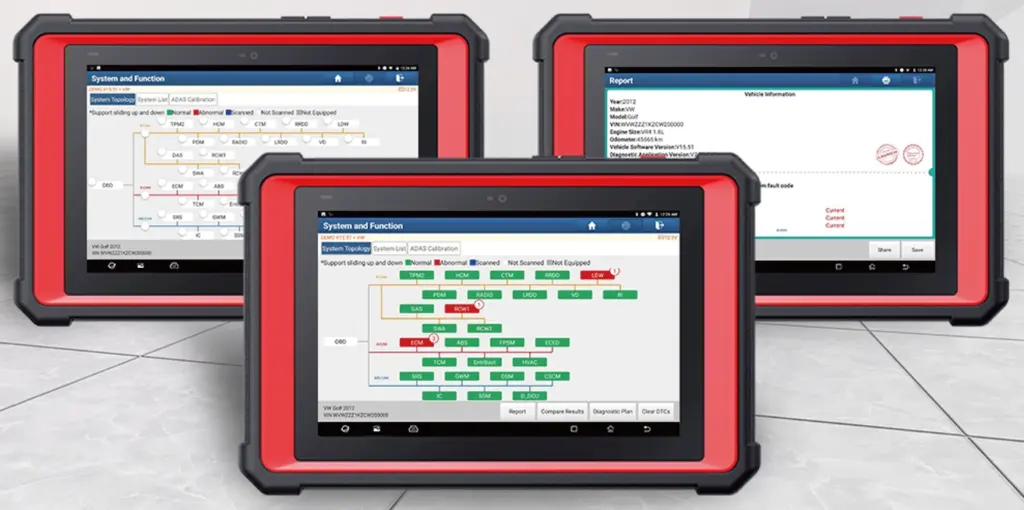

Description: Maximize your diagnostic efficiency with Intelligent Topology Mapping. This advanced software feature provides a visual, color-coded map of the entire vehicle’s electronic communication network. At a glance, you can identify which modules are “Normal” (Green), “Abnormal” (Red), or “Not Scanned” (Grey). This structural view helps you trace communication faults and complex DTCs across multiple systems faster than a traditional list view. Professional, detailed diagnostic reports can then be generated and shared instantly via email or QR code.

SmartLink Super Remote Diagnosis

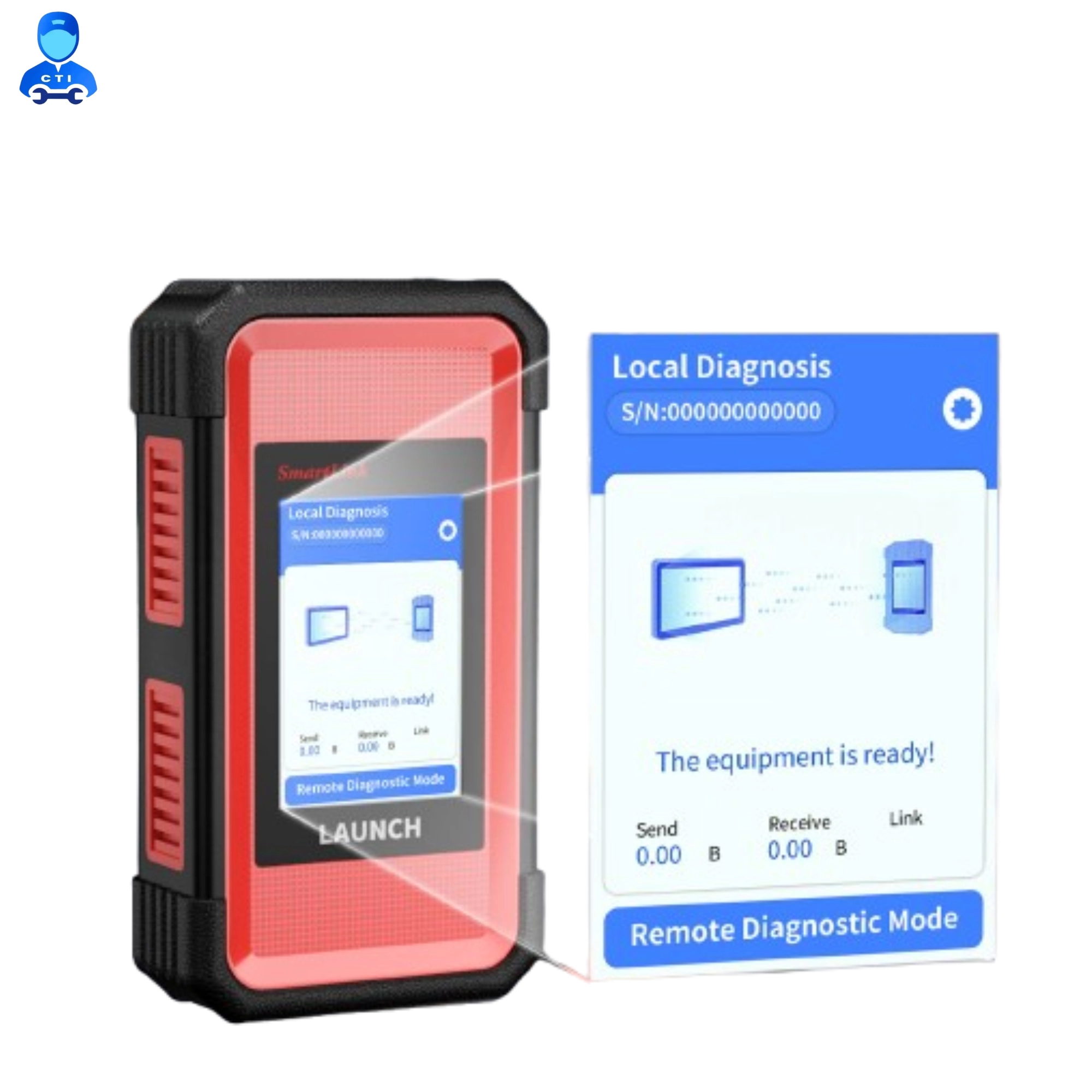

Description: Bridge the gap between your workshop and expert technicians with the SmartLink C Remote Diagnosis Platform. This system allows you to seek assistance for complex coding or programming tasks from experts thousands of miles away. The SmartLink C (at the vehicle) connects to the Launch Super Remote Diagnosis Platform via the internet, allowing a remote expert using SmartLink B or OEM tools to perform the diagnosis as if they were standing right next to the car. It supports J2534, DoIP, and CAN FD protocols for seamless OEM-level performance.

Universal Vehicle Coverage

Description: The Launch PAD V Link offers industry-leading versatility, supporting a vast range of vehicle types across four major categories. While the base software includes comprehensive diagnostic capabilities for Passenger Cars and Light Duty (LCV) vehicles, it is also hardware-ready for larger fleets. For workshops looking to expand into commercial sectors, licenses for Medium Duty and Heavy Duty commercial vehicles can be purchased separately, allowing you to use a single tool to diagnose everything from a compact sedan to a multi-axle heavy truck.
